The MSO 1300 E3 RD L1 is a high-end optical fingerprint USB reader, based on IDEMIA’s unrivalled
experience in the fields of electro-optics and forensic quality fingerprint processing algorithms. The
devices cover a wide range of applications: enrollment, authentication and identification in
industrial/commercial and governmental environments. The device was STQC certified as
Registered Devices L1 and therefore can be used in the UIDAI ecosystem.

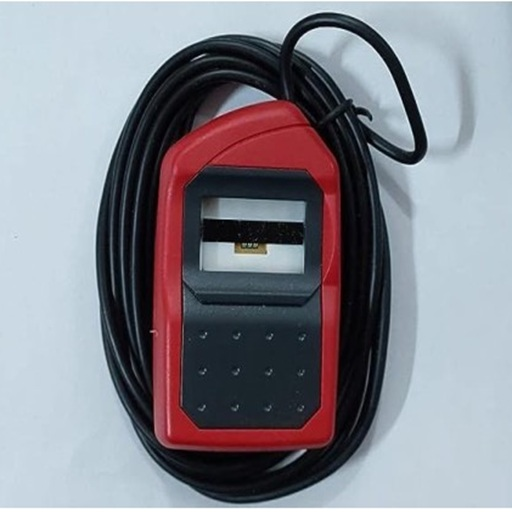

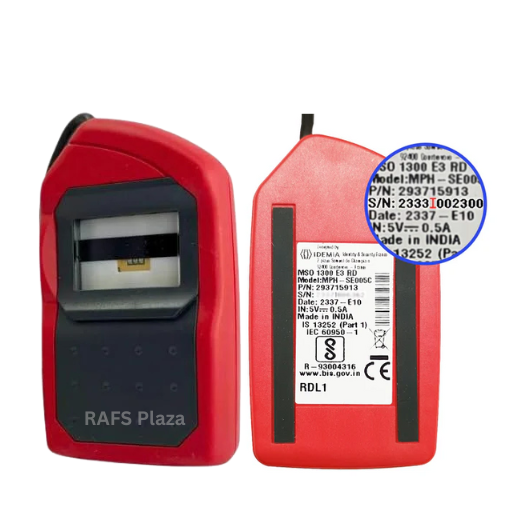

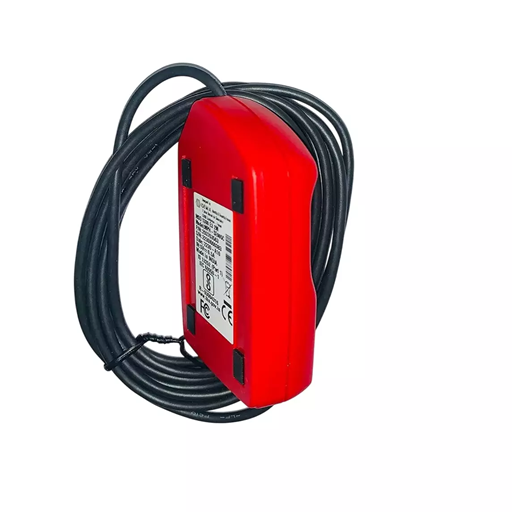

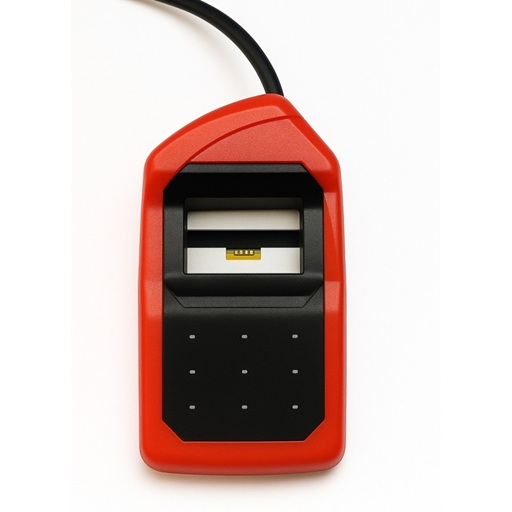

Morpho MSO 1300 E3 L1 is a secure, UIDAI & STQC certified biometric fingerprint scanner designed for
Aadhaar authentication, eKYC and AEPS banking applications. It delivers exceptional accuracy, speed, and
hardware-based encryption for identity verification.
Built with advanced L1 security architecture, the device encrypts biometric data within the hardware module using AES
and RSA cryptography. Its ergonomic and durable design with IP65 protection makes it suitable for government,
telecom, and banking use cases.
Key Highlights
500 DPI Optical Sensor for accurate and fast fingerprint capture
STQC & UIDAI L1 certified for Aadhaar authentication
Hardware-level encryption with AES-256 & RSA-2048
Supports Windows, Android & Linux
IP65 rating – dust & water resistant
Full Specification
Sensor Type
Optical, L1 Certified
Resolution
500 DPI ± 2%
Platen Area
16 x 18 mm
Image Size
256 x 360 pixels
Gray Scale
256 levels (8-bit)
Light Source
Infrared LED
Acquisition Time
< 1 second
Dimensions
80 × 50 × 30 mm
Weight
~120 g
Operating Voltage
5V (USB powered)
Current
< 120 mA active
Temperature
0°C to 50°C
Humidity
< 90% RH (non-condensing)
Protection
IP65 Dust & Splash Resistant
Security
RSA-2048, AES-256, SHA-256, TRNG, TEE, Secure Boot
Certifications
UIDAI L1, STQC, CE, FCC, RoHS, ISO 19794-2/4
Supported OS
Windows, Android, Linux
Use Cases
Aadhaar authentication / eKYC for banking, telecom, and government
Identity verification for DBT and welfare programs
Biometric login and access control
Certifications
UIDAI Level-1 Certified
STQC, CE, FCC, RoHS Compliant
ISO 19794-2/4 & FBI PIV standards
USER CONVENIENCE
USB cable length 70, 100 or 200cm
USB cable connectors (options), USB-A, USB-C, microUSB for
easy connectivity with all kinds of hardware
SOFTWARE PACKAGES
RD service and management client running on the host
Management server : device registration / de-registration,
firmware update, key management with HSM
MSO 1300 E3 RD
Interface
USB
Hardware
PCH certified
Security layer
L1 certified
Manufacturing location
Noida, India
certifications
FBI PIV IQS
Yes
MINEX compliant algorithms
Yes
BIS
Yes
STQC
L1 certified
What is RD Service (Registered Device)?
RD = Registered Device. It ensures that biometric devices are uniquely registered and authorized by UIDAI before Aadhaar authentication or eKYC operations.
Only RD-enabled devices can perform secure Aadhaar-based authentication.
RD service must be renewed periodically (usually yearly) for continued operation.
Morpho RD Service can be renewed online for 1 year or 3 years.
