ISO 7816 Parts 1-4, Class A/B/C (5 V, 3 V, 1.8 V), Microprocessor Card (T=0, T=1), Memory Card, MyKad, CAC, J-LIS, SIPRNET
Supply Current
Max. 50 mA
Read/Write Speed
9.6 – 600 Kbps
Clock Frequency
4.80 MHz; Operates up to 16 MHz
Card Connector
6-pin Contact
Card Insertion Cycles
Min. 200,000 (standard), Min. 300,000 (landing connector)
Short Circuit Protection
Supported
Product Description

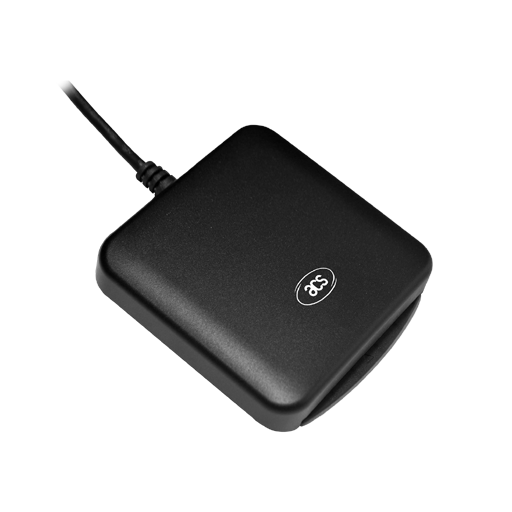

The ACR39U combines present-day technology in the form of the latest compact and stylish smart card reader. It supports ISO 7816 Class A, B and C smart cards (5 V, 3 V, 1.8 V), microprocessor cards with the T=0 and T=1 protocol as well as a wide variety of memory cards in the market, including the Secure Internet Protocol Router Network (SIPRNET) Card, the Department of Defense Common Access Card (CAC) and the Malaysian Identity Card (MyKad). The ability to support multiple smart cards makes the ACR39U ideal for a diverse range of solutions, such as PIV application, physical and logical access control and digital signatures.
Compliant with both PC/SC and CCID, the ACR39U can be operated using the plug and play function, ensuring convenience and mobility for its users. It is also designed to be integrated into any computer based environment as the reader is compatible with various operating systems such as Windows®, Linux®, macOS, Solaris™ and Android™. EMV™ Level 1 (Contact) and PBOC Level 1 (Contact) certified, the ACR39U is the ideal smart card reader for your e-Banking and e-Payment application needs.

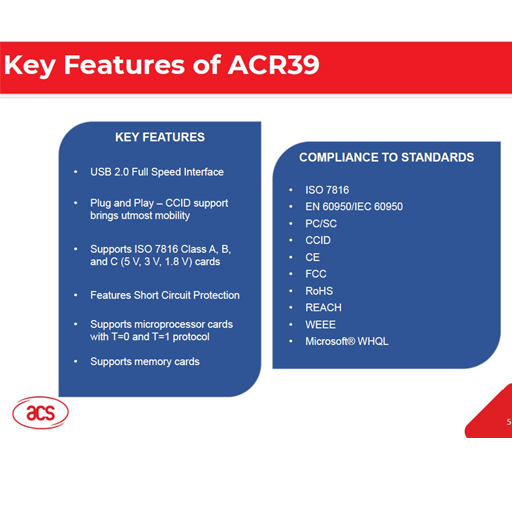

Key Features
Supports Various Types of Contact Cards
ISO 7816 Class A, B, and C (5V, 3V, and 1.8V)
Microprocessor Card (T=0, T=1)
Memory Card
MyKad Card
CAC, J-LIS, SIPRNET Smart Cards
Reliable
Compliant with international regulations
Mean Time Between Failures (MTBF) up to 500k hours
Card insertion cycles: 200,000 times
Short circuit protection
Compatible
Windows®, Linux®, macOS®, Solaris™, and Android™

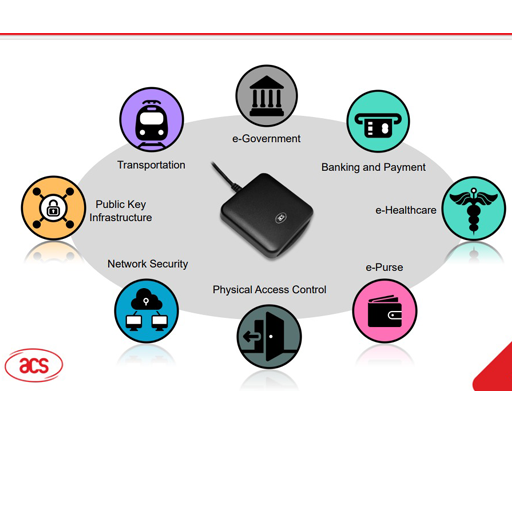

Use Cases
e-Government
e-Banking and e-Payment
e-Healthcare
Public Key Infrastructure
Network Security
Access Control
Loyalty Program

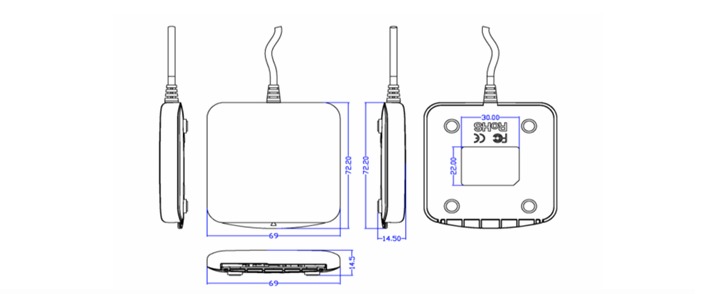

MECHANICAL SPECIFICATIONS :
Technical Specifications — ACR39U
Complete technical details for product listing or datasheet
Contact Smart Card Interface
Number of Slot(s)
1 Full-Sized Card Slot
Supported Card Types
ISO 7816 Parts 1-4, Class A/B/C (5 V, 3 V, 1.8 V), Microprocessor Card (T=0, T=1), Memory Card, MyKad Card, CAC, J-LIS, SIPRNET Smart Cards
Supply Current
Max. 50 mA
Read/Write Speed
9.6 – 600 Kbps
Clock Frequency
4.80 MHz; Operates up to 16 MHz
Card Connector
6-pin Contact
Card Insertion Cycles
Min. 200,000 (standard), Min. 300,000 (for landing connector)
PPS (Protocol & Parameters)
Supported
Short Circuit Protection
Supported
Host Interface
Protocol
USB CCID
Connector Type
ACR39U-U1: USB Type-A ACR39U-UF: USB Type-C
USB Interface
USB 2.0 Full Speed (12 Mbps); Compatible with USB 3.0
