Free shipping available • 1 year warranty • UIDAI L1 Certified
Product Specification
Brand
Edgar Interactive
Model
Bharat Secure L1 FPS (eBS02)
Type
Bluetooth Fingerprint Scanner (L1)
Interface
Bluetooth 2.1 + EDR / USB Type-C
Technical Specification
Fingerprint Sensor Type
Thermal Sensor NB-65210-S
Image Resolution
500 DPI
Image Size
300 × 400 pixels
Grayscale
256 levels (8-bit)
Capture Area
FAP20 (15.25 mm × 20.34 mm)
Dimension
90 mm × 52.1 mm × 25 mm (L×W×H)
Weight
Approx. 40 g
Scans per Charge
Up to 1000 scans
Battery
3.7V / 400mAh rechargeable lithium
Charging
Type-C USB Port, 5V 1.5A
Display
128×32 OLED Display
Power Button
Capacitive Touch Switch
Wireless Encryption
RSA2048, AES-GCM-256, SHA-256, TRNG
Security
Secure Boot, Secure Memory, TEE with Key Wrapping
Certifications
UIDAI, STQC, CE, RoHS, FIPS 201, ISO19794-2/4, FBI PIV
Protection
IP67 — Water & Dust Resistant
Operating Systems
Windows, Android
Operating Temperature
0°C – 50°C
Power Consumption
~1 Watt (from internal battery)
Product Description

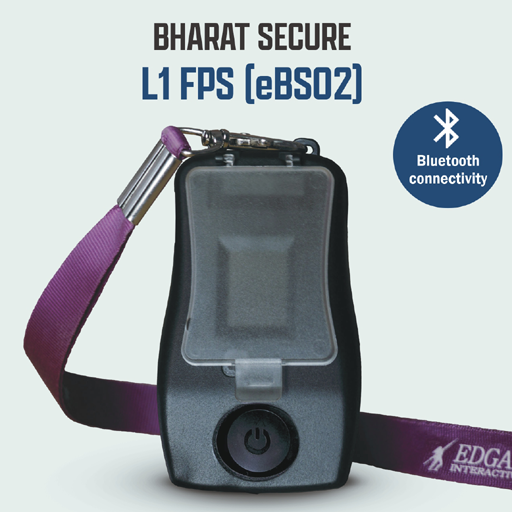

Bharat Secure L1 FPS (eBS02) by Edgar Interactive is a next-generation fingerprint scanner designed for secure and wireless biometric authentication. Featuring Bluetooth connectivity and a 500 DPI thermal sensor, it eliminates cable clutter while delivering fast and precise fingerprint capture.
Fully certified by UIDAI and STQC, it meets the standards for Aadhaar-based authentication, eKYC, and AEPS transactions. The IP67-rated build ensures robust protection in outdoor and field environments, while hardware encryption safeguards user data integrity.
Key Features
Wireless Bluetooth Connectivity (Version 2.1 + EDR)
500 DPI Thermal Fingerprint Sensor (NB-65210-S)
High-Speed Secure Communication Channel
IP67 Certified – Water and Dust Resistant
RSA2048, AES-GCM-256, SHA-256, and TRNG Encryption

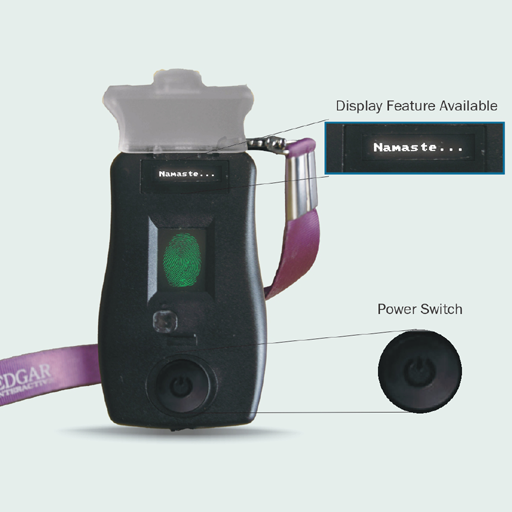

OLED Display with Capacitive Touch Power Button
Lightweight (40g) and Compact Ergonomic Design
Up to 1000 Scans Per Charge
Compliant with ISO19794-2/4 & FIPS 201
Applications
Aadhaar Enabled Payment System (AEPS)
eKYC and Banking Verification
Government Welfare Schemes (NREGA, PDS, etc.)
Healthcare and Insurance Services
Employee Attendance & Access Control
Secure Identity Verification
Product Datasheet
For More details Download product datasheet of the product. Contact with the sales Team
of Rafs Plaza, Call - 9679868503 or 7001007044 or mail us at sales@rafsedigital.com
