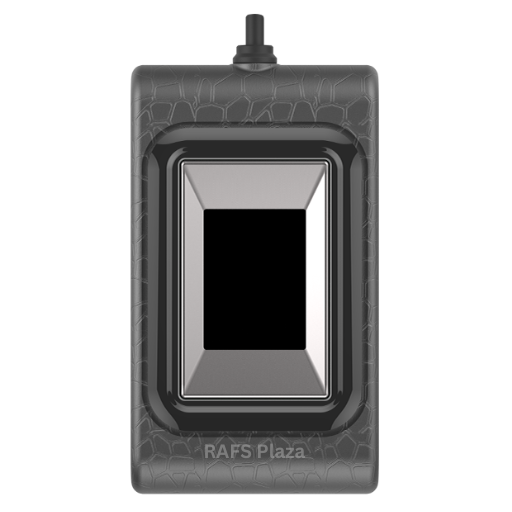

Mantra MARC11 L1 Capacitive Fingerprint Scanner front view

Mantra MARC11 L1 Capacitive Fingerprint Scanner (USB Type)

Price : ₹--/-

Free Shipping • 1 Year Warranty • L1 Certified Device

Product Specification

BrandMantra
ModelMARC11 L1
Sensor TypeFAP10 Capacitive Fingerprint Sensor
Resolution508 DPI ±2%
Platen Size12.8 mm × 18 mm
Image Size256 × 360 pixels (8-bit grayscale)
Capture ModeAuto finger detection & auto capture
InterfaceUSB 2.0 (Type-A)
Operating SystemAndroid (with UIDAI RD Service)

Technical Specification

Image QualityMINEX compliant, FAP10 certified
MTBF50,000 hours
Sensor Lifespan1 million wear & tear cycles
Surface Hardness7H rated scratch resistance
Protection RatingIP54 device level, IP67 platen area
Operating Temperature-20°C to +70°C
Humidity<90% RH non-condensing
Crypto SecurityRSA2048, AES-GCM-256, SHA-256, TRNG, Secure Boot & TEE
CertificationsSTQC, UIDAI L1, FBI PIV, CE, FCC, RoHS, ISO 19794-2/4
Dimensions (L×W×H)58.1 × 33.3 × 11 mm
Weight40 g
Power+5V ±5% (USB powered)
CurrentOperating <50 mA | Standby <30 mA

Product Description

Mantra MARC11 L1 is a compact, L1-certified capacitive fingerprint scanner designed for high accuracy, speed, and reliability in Aadhaar-based authentication. It features a FAP10 capacitive sensor with 508 DPI resolution, IP54 device-level protection, and AES/RSA cryptographic security.

At a Glance

Sensors
Thermal Sensor, Model NB-65210-S
Image Resolution
500 dpi
Capture Area
FAP 20 (15.25mm X 20.34mm)
Scanner Output Image Size
300 x 400 Pixel
Gray Level
8 bit/pixel, max 256 gray scales
Image Ratio of Length to Width
1:1
Scanner Interface Cable Power
USB TYPE-A, Micro USB & Type-C
Live Scan
Yes, Ensures protection against Spoofing.
Extractor and Captured Image
ISO19794-2 / ISO19794-4 and FIPS 201* Compliant, Minex III Certified
Supporting JPEG 2000 lossless, ISO, PIV, WSQ (Compression 10:1)
Supply
1 Watt Approx. (From USB port) (100 mA Approx., Standby: 20mA)
Dimension
80mm(L) x 57mm(M) x 23mm(H)
Weight
60g (approx)
Temperature
0 to 50 Degree
ESD
8KV
Supported Operating Systems
Windows, Android, and Linux Supported
Operating Voltage
+5.0V ±5%
Current Consumptions
: Operating Current: less than 50 mA & Standby Current : less than 30 mA
Operating Temperature
20°C to +70°C
Storage Temperature
-20°C to +85°C
Humidity (Operating / Storage)
less than 90% RH, Non-condensing
Biometric Data Interchange Format
SO 19794-2 : 2005 & 2011, ISO 19794-4 : 2005 & 2011, WSQ3.1
EMI / EMC Compliance
CE & FCC Part 15B class A
ESD protection
Contact Discharge: +/- 8kV, Air Discharge: +/- 15kV
Environmental, Health and Safety
RoHS
Safety
EN/IEC 62368-1, IS 13252 (Part 1)
Image Quality
IP54 (Device Level), IP67 (Platen Area)
Operating System
Android
Standard Software/SDK
UIDAI L1 RD Service
