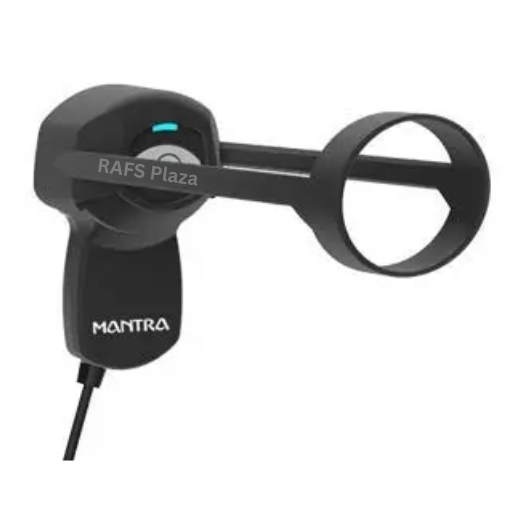

Mantra MIS100 V2 IRIS Scanner front view

Mantra MIS100 V2 IRIS Scanner

Price : ₹--/-

Free shipping • 1 Year Warranty • STQC Certified

Key Specifications

Brand Mantra
Model MIS100 V2
Type Single IRIS Sensor
Interface USB 2.0 High Speed
Resolution > 10 pixels/mm, >50% @ 1.0 LP/mm
Capture Time < 2 seconds (Auto Capture)
Imaging Wavelength 700–900 nm
Certifications STQC, RoHS, FCC Part15B, IEC 62471
Supported OS Windows, Android, Linux

Product Description

Mantra MIS100 V2 is a high-quality single IRIS sensor device designed for secure identity authentication. It is STQC certified and suitable for Aadhaar authentication, eKYC, and access control applications.

The device uses advanced proprietary distance sensing and focus analysis technology, ensuring fast and accurate IRIS capture. It automatically detects poor-quality IRIS images and provides LED feedback for optimal performance.

Sensor

Sensors
Thermal Sensor, Model NB-65210-S
Image Resolution
500 dpi
Capture Area
FAP 20 (15.25mm X 20.34mm)
Scanner Output Image Size
300 x 400 Pixel
Gray Level
8 bit/pixel, max 256 gray scales
Image Ratio of Length to Width
1:1
Scanner Interface Cable Power
USB TYPE-A, Micro USB & Type-C
Live Scan
Yes, Ensures protection against Spoofing.
Extractor and Captured Image
ISO19794-2 / ISO19794-4 and FIPS 201* Compliant, Minex III Certified
Supporting JPEG 2000 lossless, ISO, PIV, WSQ (Compression 10:1)
Supply
1 Watt Approx. (From USB port) (100 mA Approx., Standby: 20mA)
Dimension
80mm(L) x 57mm(M) x 23mm(H)
Weight
60g (approx)
Temperature
0 to 50 Degree
ESD
8KV
Supported Operating Systems
Windows, Android, and Linux Supported

Key Features

Applications

For more technical details, you can download the full MIS100 V2 Specification PDF.
